Overview

Be.Stateless.BizTalk.Pipelines is part of the BizTalk.Factory Application Package. This component provides versatile “one-size-fits-all” pipelines for general purpose Microsoft BizTalk Server® development.

Be.Stateless.BizTalk.Pipelines

Be.Stateless.BizTalk.Pipelines provides three sets of Microsoft BizTalk Server® pipelines. Each set supports both inbound and outbound message processing and each set’s purpose is determined by the component being hosted in the Assembling/Disassembling stage. Specifically, BizTalk.Factory provides the following pipelines:

• Be.Stateless.BizTalk.MicroPipelines.FFReceive which is used for scenarios where flat-file message payload processing is necessary upon receiving messages. It is defined as follows;

• Be.Stateless.BizTalk.MicroPipelines.FFTransmit which is used for scenarios where flat-file message payload processing is necessary upon sending messages. It is defined as follows;

• Be.Stateless.BizTalk.MicroPipelines.PassThruReceive which is used for pass-through scenarios where no message payload processing is necessary upon receiving messages. It is defined as follows;

• Be.Stateless.BizTalk.MicroPipelines.PassThruTransmit which is used for pass-through scenarios where no message payload processing is necessary upon sending messages. It is defined as follows;

• Be.Stateless.BizTalk.MicroPipelines.XmlReceive which is used for scenarios where XML message payload processing is necessary upon receiving messages. It is defined as follows;

• Be.Stateless.BizTalk.MicroPipelines.XmlTransmit which is used for scenarios where XML message payload processing is necessary upon sending messages. It is defined as follows.

These pipelines have been dubbed micro pipelines because they essentially host up to two instances of the MicroPipelineComponent pipeline component —see Be.Stateless.BizTalk.Pipeline.Components for further information,— one before and one after the assembler/disassembler component if it is present or just a single one if no assembler/disassembler component is present. In a given pipeline, the MicroPipelineComponent is obviously repeated to provide maximum configuration flexibility.

Pipeline Definitions

It is worth noticing that these pipelines have not been defined via the Microsoft BizTalk Server® designer surface but have been directly defined in a C# type-safe way thanks to a C# embedded DSL, Be.Stateless.BizTalk.Dsl.Pipeline, tailored for pipelines. All their definitions can be found in the Be.Stateless.BizTalk.Pipeline.Definitions project in the same GitHub repository.

Pipeline Build

Just because it references the Be.Stateless.BizTalk.Pipeline.Definitions project, the Be.Stateless.BizTalk.Pipelines project will produce pipeline designer surface equivalent outputs when being built. This is made possible thanks to the conjunctive work of both the BizTalk.Server.2020.Build and Be.Stateless.BizTalk.Build.Tasks components to process the pipeline definitions found in the referenced Be.Stateless.BizTalk.Pipeline.Definitions project.

All the pipeline designer surface equivalent outputs, i.e. the *.btp files, can be found in the Be.Stateless.BizTalk.Pipelines project in the same GitHub repository. Notice that these files are being generated anew at each build; they have been committed into the source code for simplicity’s sake.

For illustration’s sake, here is the C# definition of the Be.Stateless.BizTalk.MicroPipelines.XmlReceive:

public class XmlReceive : ReceivePipeline
{
  public XmlReceive()
  {
    Description = "XML receive micro-pipeline.";
    Version = new(1, 0);
    Stages.Decode
      .AddComponent(new FailedMessageRoutingEnablerComponent())
      .AddComponent(new MicroPipelineComponent { Enabled = true });
    Stages.Disassemble
      .AddComponent(new XmlDasmComp());
    Stages.Validate
      .AddComponent(new MicroPipelineComponent { Enabled = true });
  }
}

And its designer-surface equivalent .btp output file:

<Document xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:xsd='http://www.w3.org/2001/XMLSchema' PolicyFilePath='BTSReceivePolicy.xml' MajorVersion='1' MinorVersion='0'>
  <Description>XML receive micro-pipeline.</Description>
  <Stages>
    <Stage CategoryId='9d0e4103-4cce-4536-83fa-4a5040674ad6'>
      <Components>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.FailedMessageRoutingEnablerComponent</Name>
          <ComponentName>FailedMessageRoutingEnablerComponent</ComponentName>
          <Description>Enables routing of failed messages and prevents routing failure reports from being generated.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='EnableFailedMessageRouting'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='SuppressRoutingFailureReport'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
          </Properties>
          <CachedDisplayName>FailedMessageRoutingEnablerComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.MicroPipelineComponent</Name>
          <ComponentName>MicroPipelineComponent</ComponentName>
          <Description>Runs a sequence of micro components as if they were regular pipeline components.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='Components'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>MicroPipelineComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage CategoryId='9d0e4105-4cce-4536-83fa-4a5040674ad6'>
      <Components>
        <Component>
          <Name>Microsoft.BizTalk.Component.XmlDasmComp</Name>
          <ComponentName>XML disassembler</ComponentName>
          <Description>Streaming XML disassembler</Description>
          <Version>1.0</Version>
          <Properties>
            <Property Name='EnvelopeSpecNames'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='EnvelopeSpecTargetNamespaces'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='DocumentSpecNames'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='DocumentSpecTargetNamespaces'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='AllowUnrecognizedMessage'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='ValidateDocument'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='RecoverableInterchangeProcessing'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='HiddenProperties'>
              <Value xsi:type='xsd:string'>EnvelopeSpecTargetNamespaces,DocumentSpecTargetNamespaces</Value>
            </Property>
            <Property Name='DtdProcessing'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>XML disassembler</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage CategoryId='9d0e410d-4cce-4536-83fa-4a5040674ad6'>
      <Components>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.MicroPipelineComponent</Name>
          <ComponentName>MicroPipelineComponent</ComponentName>
          <Description>Runs a sequence of micro components as if they were regular pipeline components.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='Components'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>MicroPipelineComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage CategoryId='9d0e410e-4cce-4536-83fa-4a5040674ad6'>
      <Components />
    </Stage>
  </Stages>
</Document>

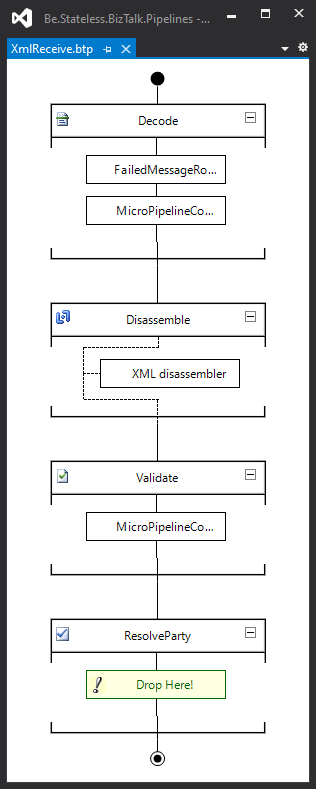

Which displays as follows when opened in the designer surface:

For the sake of completeness, Be.Stateless.BizTalk.Build.Tasks, with the help of BizTalk.Server.2020.Build, substitutes itself to the default Microsoft BizTalk Server® pipeline compiler and produces the following .btp.cs output file —the astute reader will immediately notice how much more readable, explicit and better formatted this code is in comparison with the one produced by the default compiler:

namespace Be.Stateless.BizTalk.MicroPipelines
{
  public sealed class XmlReceive : Microsoft.BizTalk.PipelineOM.ReceivePipeline
  {
    public XmlReceive()
    {
      Microsoft.BizTalk.PipelineOM.Stage stage = this.AddStage(Microsoft.BizTalk.PipelineOM.Stage.Decoder, Microsoft.BizTalk.PipelineOM.ExecutionMode.all);
      Microsoft.BizTalk.Component.Interop.IBaseComponent comp0 = Microsoft.BizTalk.PipelineOM.PipelineManager.CreateComponent("Be.Stateless.BizTalk.Component.FailedMessageRoutingEnablerComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14");
      if (comp0.GetType().IsInstanceOfType(typeof(Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)))
      {
        ((Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)(comp0)).Load(new Microsoft.BizTalk.PipelineOM.PropertyBag(new System.Collections.ArrayList(new Microsoft.BizTalk.PipelineOM.PropertyContents[] {
          new Microsoft.BizTalk.PipelineOM.PropertyContents("Enabled", true),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("EnableFailedMessageRouting", true),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("SuppressRoutingFailureReport", true)})), 0);
      }
      this.AddComponent(stage, comp0);
      Microsoft.BizTalk.Component.Interop.IBaseComponent comp1 = Microsoft.BizTalk.PipelineOM.PipelineManager.CreateComponent("Be.Stateless.BizTalk.Component.MicroPipelineComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14");
      if (comp1.GetType().IsInstanceOfType(typeof(Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)))
      {
        ((Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)(comp1)).Load(new Microsoft.BizTalk.PipelineOM.PropertyBag(new System.Collections.ArrayList(new Microsoft.BizTalk.PipelineOM.PropertyContents[] {
          new Microsoft.BizTalk.PipelineOM.PropertyContents("Enabled", true),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("Components", "")})), 0);
      }
      this.AddComponent(stage, comp1);
      stage = this.AddStage(Microsoft.BizTalk.PipelineOM.Stage.DisassemblingParser, Microsoft.BizTalk.PipelineOM.ExecutionMode.firstRecognized);
      Microsoft.BizTalk.Component.Interop.IBaseComponent comp2 = Microsoft.BizTalk.PipelineOM.PipelineManager.CreateComponent("Microsoft.BizTalk.Component.XmlDasmComp, Microsoft.BizTalk.Pipeline.Components, Version=3.0.1.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35");
      if (comp2.GetType().IsInstanceOfType(typeof(Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)))
      {
        ((Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)(comp2)).Load(new Microsoft.BizTalk.PipelineOM.PropertyBag(new System.Collections.ArrayList(new Microsoft.BizTalk.PipelineOM.PropertyContents[] {
          new Microsoft.BizTalk.PipelineOM.PropertyContents("EnvelopeSpecNames", ""),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("EnvelopeSpecTargetNamespaces", ""),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("DocumentSpecNames", ""),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("DocumentSpecTargetNamespaces", ""),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("AllowUnrecognizedMessage", false),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("ValidateDocument", false),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("RecoverableInterchangeProcessing", false),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("HiddenProperties", "EnvelopeSpecTargetNamespaces,DocumentSpecTargetNamespaces"),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("DtdProcessing", "")})), 0);
      }
      this.AddComponent(stage, comp2);
      stage = this.AddStage(Microsoft.BizTalk.PipelineOM.Stage.Validator, Microsoft.BizTalk.PipelineOM.ExecutionMode.all);
      Microsoft.BizTalk.Component.Interop.IBaseComponent comp3 = Microsoft.BizTalk.PipelineOM.PipelineManager.CreateComponent("Be.Stateless.BizTalk.Component.MicroPipelineComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14");
      if (comp3.GetType().IsInstanceOfType(typeof(Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)))
      {
        ((Microsoft.BizTalk.Component.Interop.IPersistPropertyBag)(comp3)).Load(new Microsoft.BizTalk.PipelineOM.PropertyBag(new System.Collections.ArrayList(new Microsoft.BizTalk.PipelineOM.PropertyContents[] {
          new Microsoft.BizTalk.PipelineOM.PropertyContents("Enabled", true),
          new Microsoft.BizTalk.PipelineOM.PropertyContents("Components", "")})), 0);
      }
      this.AddComponent(stage, comp3);
    }

    public override string XmlContent
    {
      get
      {
        return _strPipeline;
      }
    }

    private const string _strPipeline = @"<?xml version='1.0' encoding='utf-16'?>
<Document xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:xsd='http://www.w3.org/2001/XMLSchema' MajorVersion='1' MinorVersion='0'>
  <Description>XML receive micro-pipeline.</Description>
  <CategoryId>f66b9f5e-43ff-4f5f-ba46-885348ae1b4e</CategoryId>
  <FriendlyName>Receive</FriendlyName>
  <Stages>
    <Stage>
      <PolicyFileStage _locAttrData='Name' _locID='1' Name='Decode' minOccurs='0' maxOccurs='-1' execMethod='All' stageId='9d0e4103-4cce-4536-83fa-4a5040674ad6' />
      <Components>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.FailedMessageRoutingEnablerComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14</Name>
          <ComponentName>FailedMessageRoutingEnablerComponent</ComponentName>
          <Description>Enables routing of failed messages and prevents routing failure reports from being generated.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='EnableFailedMessageRouting'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='SuppressRoutingFailureReport'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
          </Properties>
          <CachedDisplayName>FailedMessageRoutingEnablerComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.MicroPipelineComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14</Name>
          <ComponentName>MicroPipelineComponent</ComponentName>
          <Description>Runs a sequence of micro components as if they were regular pipeline components.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='Components'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>MicroPipelineComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage>
      <PolicyFileStage _locAttrData='Name' _locID='2' Name='Disassemble' minOccurs='0' maxOccurs='-1' execMethod='FirstMatch' stageId='9d0e4105-4cce-4536-83fa-4a5040674ad6' />
      <Components>
        <Component>
          <Name>Microsoft.BizTalk.Component.XmlDasmComp, Microsoft.BizTalk.Pipeline.Components, Version=3.0.1.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35</Name>
          <ComponentName>XML disassembler</ComponentName>
          <Description>Streaming XML disassembler</Description>
          <Version>1.0</Version>
          <Properties>
            <Property Name='EnvelopeSpecNames'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='EnvelopeSpecTargetNamespaces'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='DocumentSpecNames'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='DocumentSpecTargetNamespaces'>
              <Value xsi:type='xsd:string' />
            </Property>
            <Property Name='AllowUnrecognizedMessage'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='ValidateDocument'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='RecoverableInterchangeProcessing'>
              <Value xsi:type='xsd:boolean'>false</Value>
            </Property>
            <Property Name='HiddenProperties'>
              <Value xsi:type='xsd:string'>EnvelopeSpecTargetNamespaces,DocumentSpecTargetNamespaces</Value>
            </Property>
            <Property Name='DtdProcessing'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>XML disassembler</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage>
      <PolicyFileStage _locAttrData='Name' _locID='3' Name='Validate' minOccurs='0' maxOccurs='-1' execMethod='All' stageId='9d0e410d-4cce-4536-83fa-4a5040674ad6' />
      <Components>
        <Component>
          <Name>Be.Stateless.BizTalk.Component.MicroPipelineComponent, Be.Stateless.BizTalk.Pipeline.Components, Version=2.1.0.0, Culture=neutral, PublicKeyToken=3707daa0b119fc14</Name>
          <ComponentName>MicroPipelineComponent</ComponentName>
          <Description>Runs a sequence of micro components as if they were regular pipeline components.</Description>
          <Version>2.0</Version>
          <Properties>
            <Property Name='Enabled'>
              <Value xsi:type='xsd:boolean'>true</Value>
            </Property>
            <Property Name='Components'>
              <Value xsi:type='xsd:string' />
            </Property>
          </Properties>
          <CachedDisplayName>MicroPipelineComponent</CachedDisplayName>
          <CachedIsManaged>true</CachedIsManaged>
        </Component>
      </Components>
    </Stage>
    <Stage>
      <PolicyFileStage _locAttrData='Name' _locID='4' Name='ResolveParty' minOccurs='0' maxOccurs='-1' execMethod='All' stageId='9d0e410e-4cce-4536-83fa-4a5040674ad6' />
      <Components />
    </Stage>
  </Stages>
</Document>";

    public override System.Guid VersionDependentGuid
    {
      get
      {
        return new System.Guid(_versionDependentGuid);
      }
    }

    private const string _versionDependentGuid = "2cdb242d-d0ba-4e55-995a-47632bddd5fc";
  }
}
